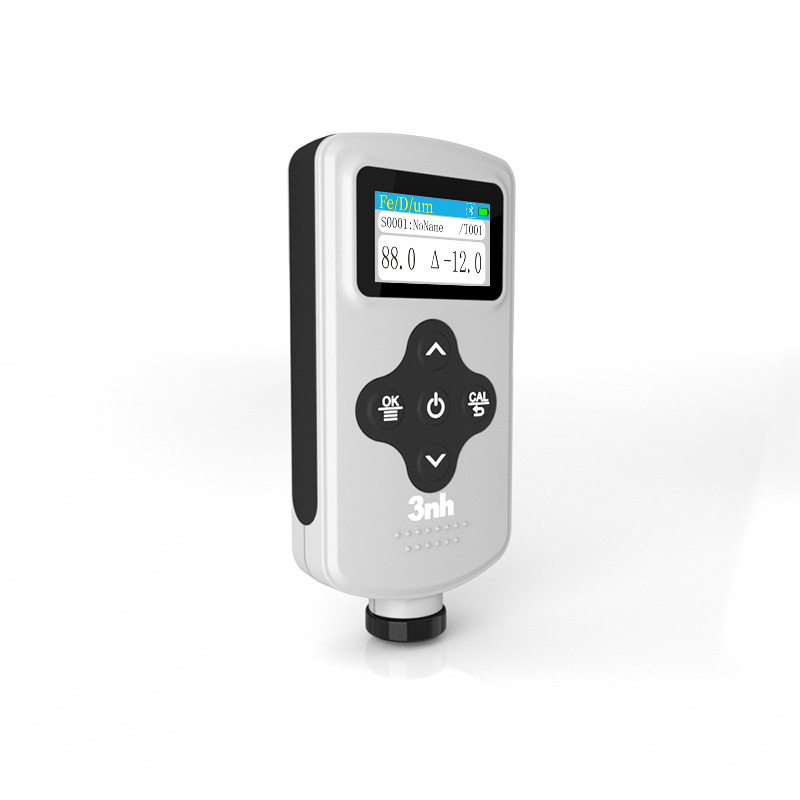

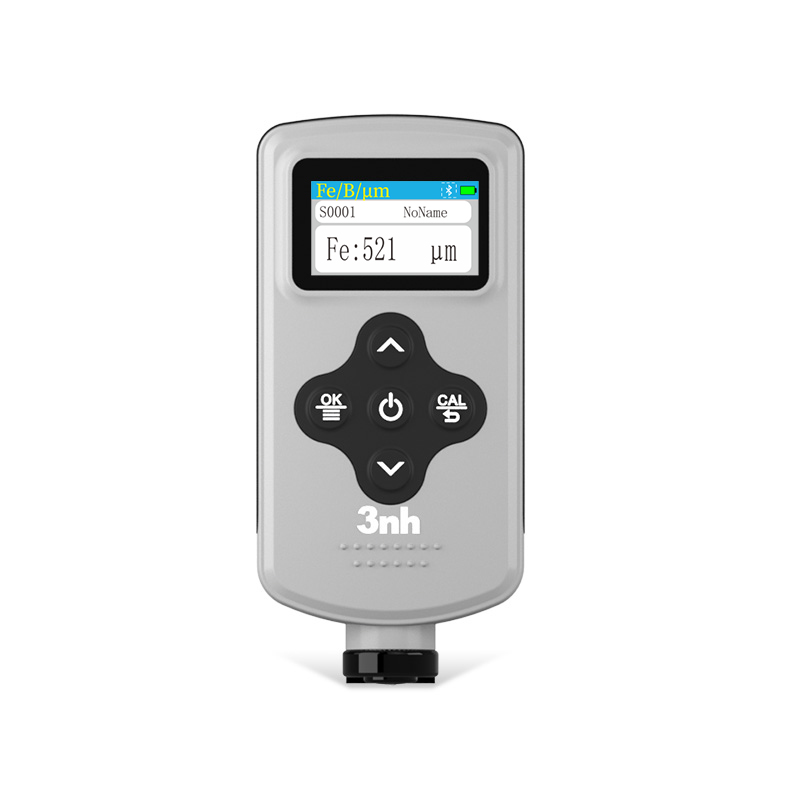

YT Series coating thickness gauge is made by 3NH company. It is a domestic coating thickness gauge with independent intellectual property rights, it can quickly and accurately detect the thickness of non-magnetic coating on ferromagnetic metal substrate by magnetic method.

Instrument measurement using simple, fixed single positioning piece. The Fe-based probe can detect the thickness of non-magnetic coatings on various magnetic substrates (such as steel) , such as paint, powder, porcelain, chromium, copper, zinc, etc. .



Features of YT5100 economic integrated iron-based coating thickness gauge



1.Support Zero Point

2.IPS pure color screen, smooth operation, large storage capacity

3.The radius of convex plane and concave plane

Precisely measured at 5mm and 10mm respectively

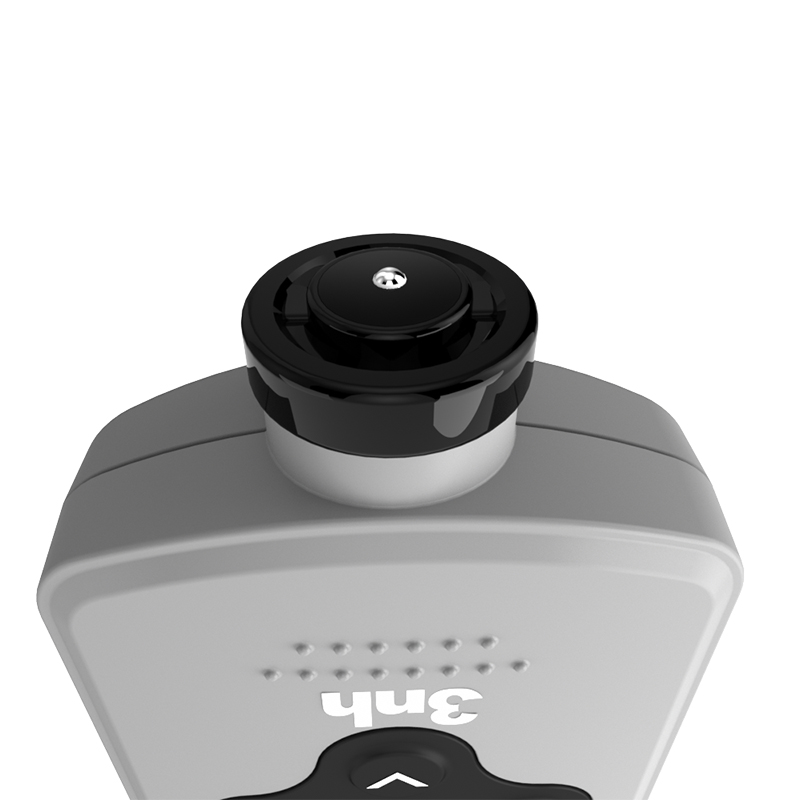

4.High sensitive probe

Independently developed high sensitive probe response speed, testing more accurate





Technical parameters of YT5100 economic integrated iron-based coating thickness gauge



Model	YT5100
Product Name	Economical integrated iron-based coating thickness gauge YT5100
Characteristic	Yt Series coating thickness gauge is made by 3NH company. It is a domestic coating thickness gauge with independent intellectual property rights, it can quickly and accurately detect the thickness of non-magnetic coating on ferromagnetic metal substrate by magnetic method. Instrument measurement using simple, fixed single positioning piece. The Fe-based probe can detect the thickness of non-magnetic coatings on various magnetic substrates (such as steel) , such as paint, powder, porcelain, chromium, copper, zinc, etc. .
Standard	ASTM B499,ASTM D1400，ASTM D709; ISO 2178,ISO 2360，ISO 2808; GB/T 4956,JB/T 8393
Matrix	Fe
Probe type	Integrated
Positioning structure	Single localizer
Resolution	Resolution:1μm
Measurement range	0~1250μm
Measurement accuracy	zero calibration:±(3%H+1)μm； note: H is the sample thickness
Display screen	IPS Full color screen, 1.14inch
Interface	Type C USB;Button
Stored data	One thousand
Battery capacity	Lithium-ion battery, fully charged, one-time continuous test 10000

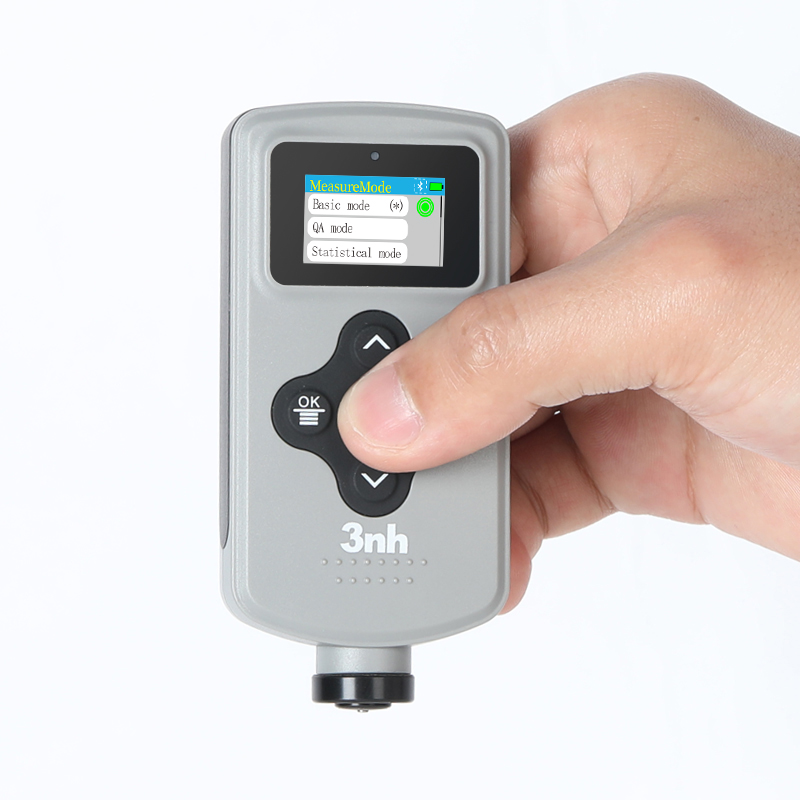

Measurement mode	Basic Model, quality control model, continuous model, statistical model
Minimum measurement size	10×10mm
Minimum measurement thickness	magnetic：0.2mm
Minimum curvature	convex radius 5mm; concave radius 10mm
Unit	μm/mil
Size	107×50×20mm
Weight	65g
Working temperature	0~40ºC(10~90%RH without condensation)
Storage temperature	-10~50ºC
Standard accessories	1 base (iron base), wrist strap, Wipe cloth, USB cable
Optional accessories	Printer，5V-2APower adapter

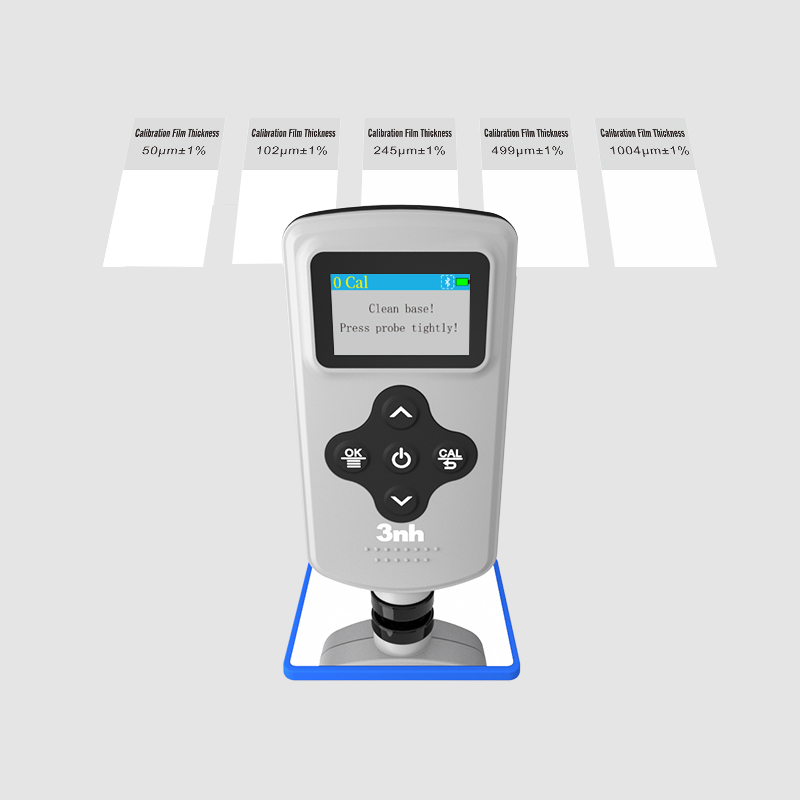

Note:	Calibration film a set of 5(slightly different thickness) , technical parameters only for reference, to the actual sales of products shall prevail
