NR110 Precision Colorimeter

Introduction:

Functional Features

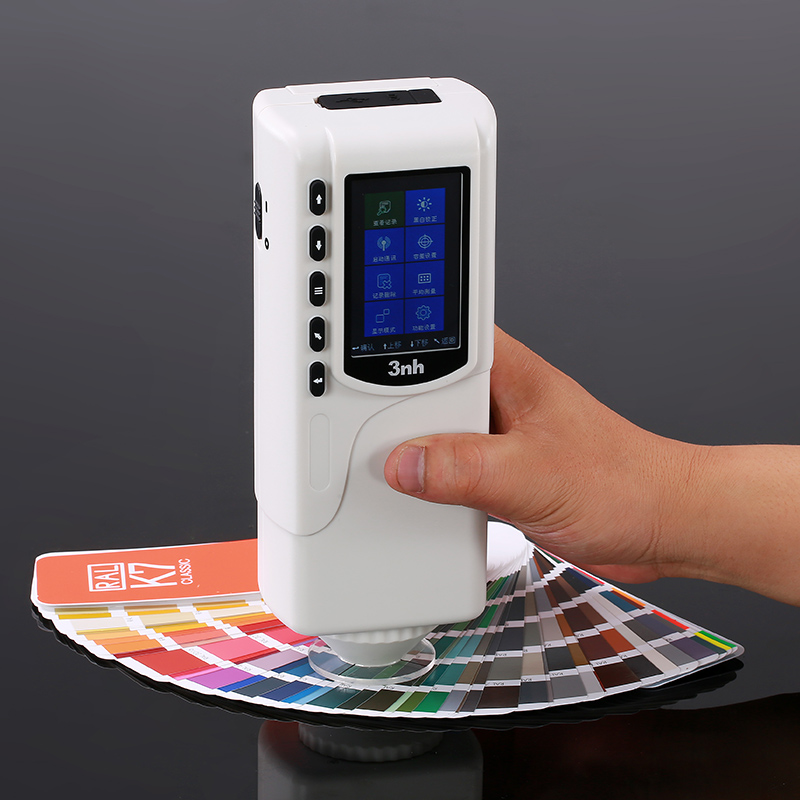

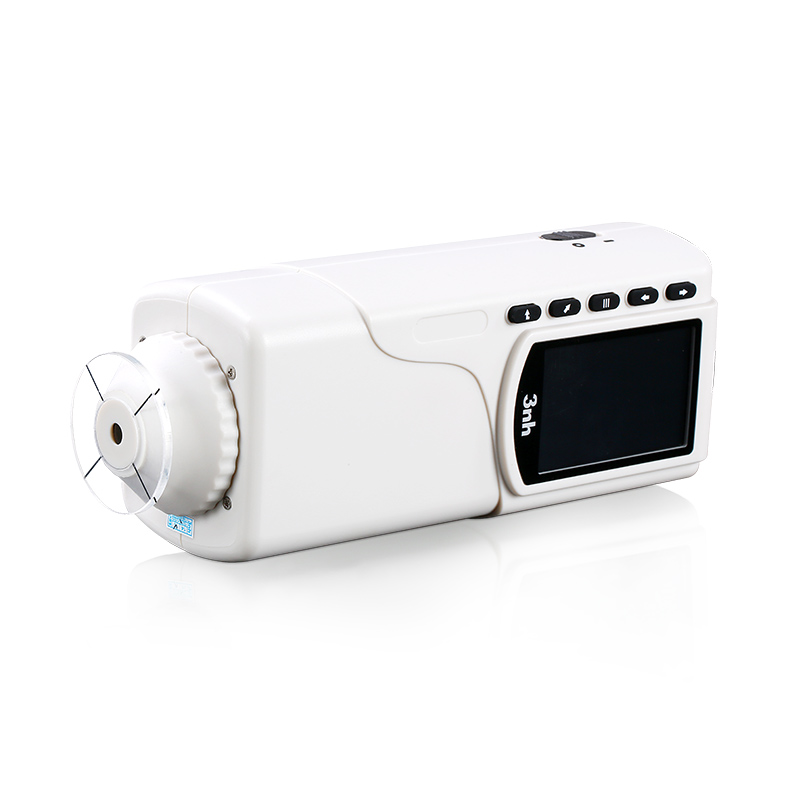

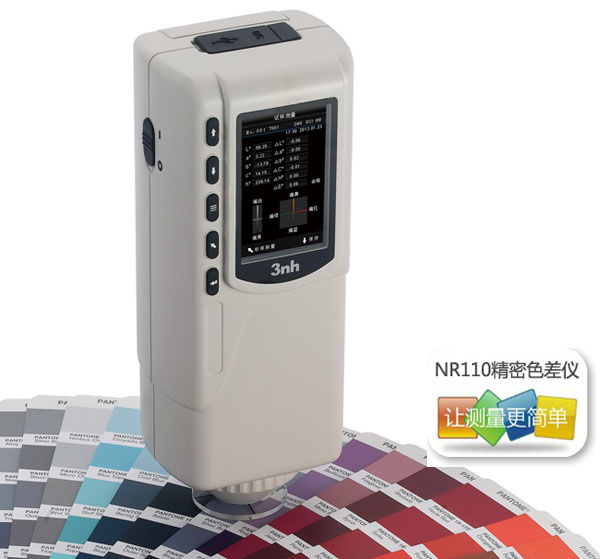

NR110 Precision Colorimeter

Since 1998, from import to domestic, 3nh NR110 precision colorimeter is an iconic milestone in color test industry.

New Functions

Double Locating: Illuminating locating and cross locating

Double Measurement End Face: Large area measurement and small area measurement

New Integrating Sphere Design: More stable measurement

Equipped with Rechargeable High-Capacity Li-ion Battery

Product Advantages

a. Built-in white plate parameters. No need to calibrate each time which realize rapid measurement.

b. Double Locating: Illuminating locating and precise cross locating.

c. Switchable Double Measurement End Face: Large stable end face and small concave-convex end face.

d. New Integrating Sphere Optical Path Design: Eliminating the stray light of main optical path and auxiliary optical path. Possessing the highest measurement stability and precision.

e. 4mm Measuring Aperture.

f. Equipped with rechargeable high-capacity Li-ion battery. No need to purchase battery repeatedly.

g. Configure CQCS3 software. Connect PC computer to realize more functions.

h. Having got SCM Metrological Certification, CE Certification, and ISO9001 Quality Management System Certification.

i. Hand-head structure: small and convenient; make the measurement easier.

j. Exquisite appearance: adopts traditional and fashionable aesthetic designs.

k. Spending huge sums on high-end mold. Product consistency approaches 100%.

l. High cost performance: large output, good quality, cheap products.

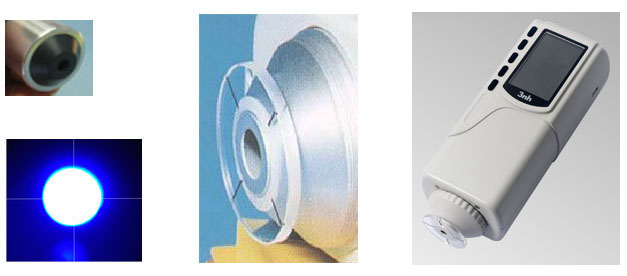

Illuminating Locating, Cross Locating, Large Stable End Face, Small Concave-Convex End Face. (for NR110)

NR110 Technical Specifications

Illuminating/Viewing Geometry	8/d
Measuring Aperture	Φ4mm
Detector	Silicon photoelectric diode
Locating	Illuminating Locating/Cross Locating
Measurement End Face	Large stable end-face and small concave-convex end-face
Color Space	CIELabCh* CIELab* CIEXYZ
Color Difference Formula	△Eab △Lab △ECh*
Light Source	D65
Light Source Device	LED blue light excitation
Errors Between Each Equipment	≤0.80ΔE*ab
Storage	100pcs standards 20000pcs samples
Repeatability	Standard deviation within ΔE*ab 0.08 Average of 30 measurements of standard white plate
Language	English/Chinese
Weight	450g
Dimension	205×67×80 mm
Power source	Rechargeable lithium-ion battery 3.7V@3200mAh
Lamp Life	5 years, more than 1.6 million measurements
Charging Time	8 hours--100% electricity
PC Software	CQCS3 Software
Printer (optional)	Miniature thermal printer
