Introduction:

Product Comparison



ISO12233 Resolution Test Chart (0.5x, 1x, 2x, 4x, 8x) 2000 lines

3nh provides one-stop service on enhanced ISO 12233 resolution test chart (0.5x, 1x, 2x, 4x, 8x), test light source and test software.

Brand: 3nh

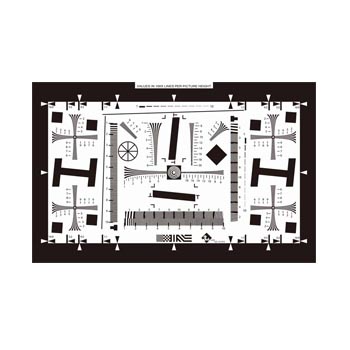

ISO 12233 Resolution Test Chart

Application

Resolution test chart is the standard proof which can provide aided testing for vertical resolution and horizontal resolution of actual shooting.

Resolution test uses ISO 12233 resolution test chart and adopts unified shooting angle and environment.
The calculation of resolution test uses HYRes software, and the calculation will be done in two parts: vertical resolution and horizontal resolution.

Digital camera assessment is different from other products. It’s unlike laptop and DIY which have a lot of software to test objective data and everything can be seen from the data. However, assessing the quality of digital camera not only needs certain objective data, but also needs to combine actual operation and the shooting proofs. Therefore, our assessment is based on the principle of objective data and combined rational analysis from the experienced reviewers to obtain the most objective assessment results.

ISO 12233 resolution test chart is in accordance with ISO 12233 standard “Photography- Electronic Photographic Image-Measurement”. In active area of 1x size, the error is only 0.1mm when measuring the height of 20cm. It has almost all the characteristics of most resolution charts.

 The following is a complete product line:

 Regular Standard Specification

ISO 12233 RESOLUTION TEST CHART

0.5X (10x17.8 cm), semimatt (normative contrast), image on photographic paper
Product No: NQ-10-50A

1X (20x35.6 cm), semimatt (normative contrast), image on photographic paper
Product No: NQ-10-100A

2X (40x71.1 cm), semimatt (normative contrast), image on photographic paper
Product No: NQ-10-200A

4X (80x142.2 cm), semimatt (normative contrast), image on photographic paper
Product No: NQ-10-400A

8X (160x284.4 cm), semimatt (normative contrast), image on photographic paper
Product No: NQ-10-800A

ENHANCED ISO 12233 RESOLUTION TEST CHART

0.5X (10x17.8 cm), semimatt (normative contrast), image on photographic paper
Product No: NE-10-50A

1X (20x35.6 cm), semimatt (normative contrast), image on photographic paper
Product No: NE-10-100A

2X (40x71.1 cm), semimatt (normative contrast), image on photographic paper
Product No: NE-10-200A

4X (80x142.2 cm), semimatt (normative contrast), image on photographic paper
Product No: NE-10-400A

8X (160x284.4 cm), semimatt (normative contrast), image on photographic paper
Product No: NE-10-800A

 DIGITAL CINE ISO 12233 RESOLUTION TEST CHART

0.75X (15x36 cm), semimatt  (normative contrast),  image on photographic paper

1.5X (30x72 cm), semimatt  (normative contrast), image on photographic paper

3X (60x144 cm), semimatt  (normative contrast), image on photographic paper

4X (80x192 cm), semiglossy  (normative contrast), image on photographic paper

 Matt

0.5X (10x17,8 cm), matt (low contrast), image on photographic paper

1X (20x35,6 cm), matt (low contrast), image on photographic paper

2X (40x71,1 cm), matt (low contrast), image on photographic paper

4X (80x142,2 cm), matt (low contras), image on photographic paper

 High Glossy (For Transmissive)

0.1X (2x3,56 cm), high glossy (high contrast), image on opaque film

0.5X (10x17,8 cm), high glossy (high contrast), image on opaque film

1X (20x35,6 cm), high glossy (high contrast), image on opaque film

 Glossy & Semiglossy (For Transmissive 适用于透射式)

0.5X (10x17,8 cm), glossy (normative contrast), image on photographic paper

1X (20x35,6 cm), glossy (normative contrast), image on photographic paper

2X (40x71,1 cm), glossy (normative contrast), image on photographic paper

4X (80x142,2 cm), glossy (normative contrast), image on photographic paper

DESCRIPTION:

Matt Test Chart / Reflective: Matt Test Chart is often used in reflective light box (3nh Reflective Light Box)
Glossy Test Chart / Transmissive: Glossy Test Chart is often used in transmissive light box (3nh Transmissive Light Box)
