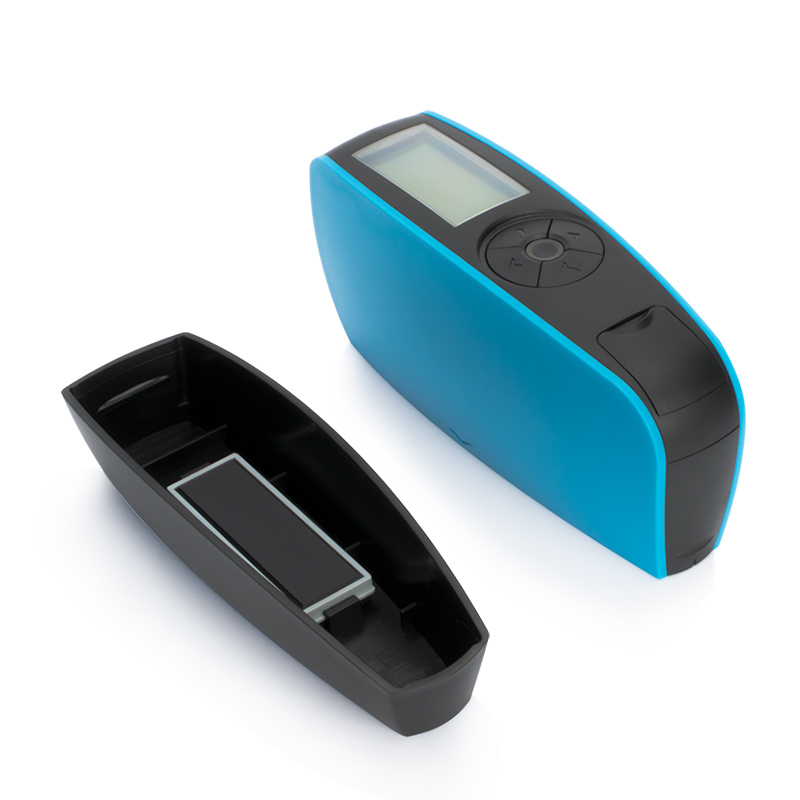

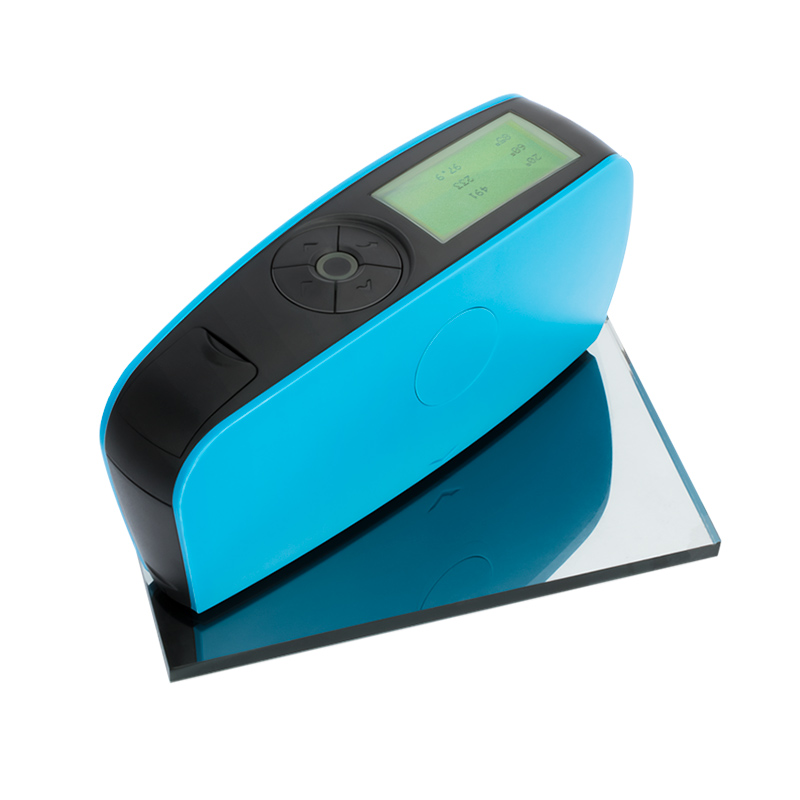

YG60S 60°Economic Gloss Meter

Home >> Products >> Gloss meters >> YG60S 60°Economic Gloss Meter

YG60S 60°Economic Gloss Meter

1414
2022-08-09
YG60S 60°Economic Gloss Meter
YG60S 60°Economic Gloss Meter
YG60S 60°Economic Gloss Meter
YG60S 60°Economic Gloss Meter
YG60S 60°Economic Gloss Meter
YG60S 60°Economic Gloss Meter

YG60S 60°Economic Gloss Meter

1414
2022-08-09
Introduction:
YG60S 60°Economic Gloss Meter is independently developed by Shenzhen 3nh Technology Co., Ltd with independent intellectual property, manufactured according to international standard ISO2813 and China standard GB/T 9754. It can meet  requirements of JJG696.


Product Features:

1. Elegant Design combined with aesthetics and ergonomics;
2. Meet  requirements of JJG696;
3. Auto Power-off within optional 30-120 seconds;
4. Comply to ISO2813,ASTM523, GB/T9754;

Application:
Widely used in the filed of paints,coating,plastics,ink,rubber,printing,paper, glass, handware, ceramic, marble etc.

Model YG60S 60°Economic Gloss Meter
Measuring Angle 60°
Measurement range 60°: 0-200GU
Division Value 1GU
Measuring Modes Basic mode
Measuring Time 0.5S
Repeatability 0~100GU : ±1GU; 100~200GU : ±1%GU
Accurate Conform with JJG696  requirements of gloss meter
Auto Power-off Time 30s
Long-time Calibration /
Language Chinese & English
Storage /
Display 2.3 inch white and black screen
Size 160*52*84mm
Weight About 300g
Power Supply 1pc dry-cell battery(can measure 10000 times) or use USB Charge
Interface USB
PC Software /
Operation Temperature Range 0-40℃(32-104° F)
Storage Temperature Range -20-50℃(-4-122° F)
Humidity Range < 85% RH, without condensation
Standard Accessories User manual, calibration plate
Optional Accessories Miniature printer,Bluetooth
Notification: the technical parameter is only for reference
