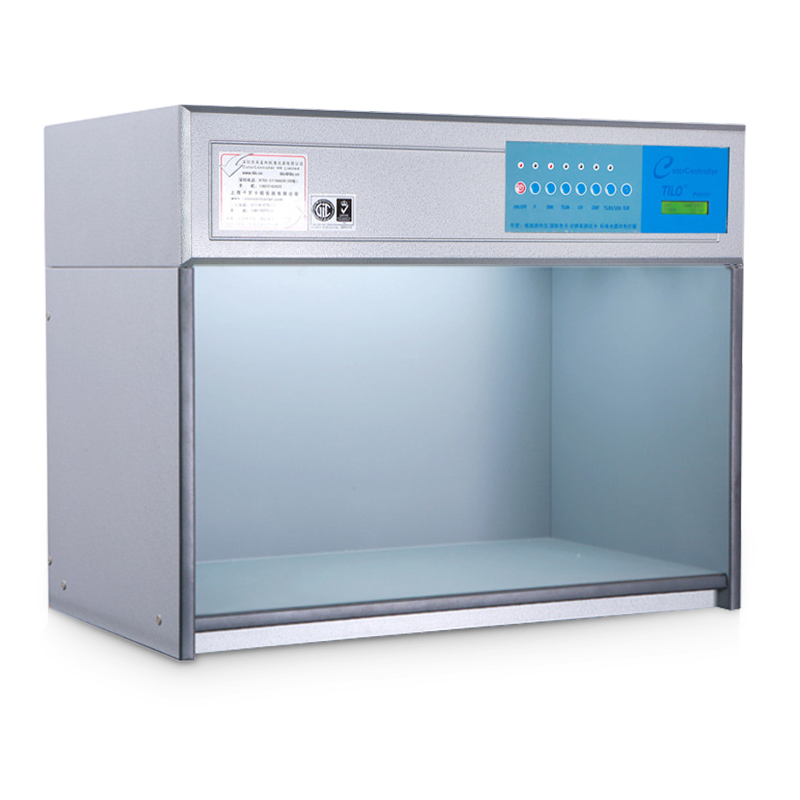

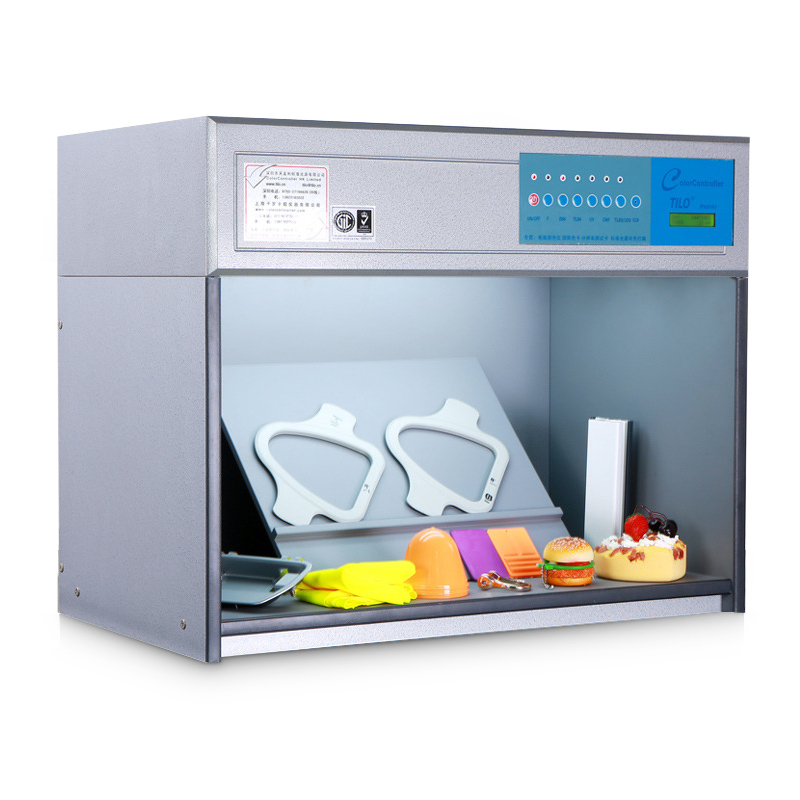

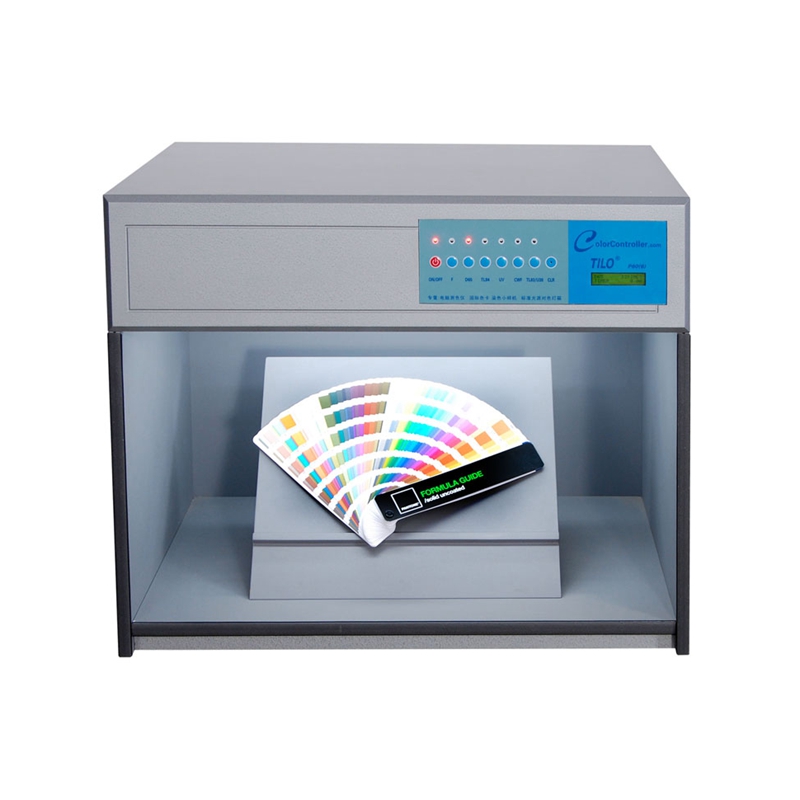

P60(6) Color Assessment Cabinets

872
P60(6) Color Assessment Cabinets
P60(6) Color Assessment Cabinets
P60(6) Color Assessment Cabinets
P60(6) Color Assessment Cabinets
P60(6) Color Assessment Cabinets
P60(6) Color Assessment Cabinets

P60(6) Color Assessment Cabinets

872
2024-07-10
Introduction:
Brand: TILO
Made in China
Configuration: D65, TL84, F, UV,CWF,TL83 six light sources
Weight: 28Kg
Dimensions(WxDxH): 710x530x570 mm


TILO P60(6) Color Assessment Cabinets is equipped with 6 light sources. The consistency of the light sources in all Tilo Colour Assessment Cabinets gives excellent viewing conditions for reliable colour critical decisions under consistent lighting.

TILO P60(6) Color Assessment Cabinets can be applied to the industries that need to perform color difference testing as follows: as the premiere designer and manufacturer of color matching instrument products for the Graphic arts, Photographic, Textile, Dyeing, Packaging, Printing, Leather, Inks, Knitwear, Plastic, Automotive and Ceramics industries.






Features:


1. TILO Color Assessment Cabinets render color more accurately. With 6 different light sources(D65, TL84, CWF, TL83, F, UV), which can detect the metamerism.
2. Meets or exceeds major international standards for visual color evaluation including: ASTM D1729, ISO3664, DIN, ANSI and BSI.
3. Easy to operate by using individual switches for each light source.
4. Elapsed time meter for tracking optimal lamp replacement.
5. Automatically alternating among light sources.
6. No warm-up time or flickering which insures quick and reliable color judgment.
7. Economic power consumption and low heat generation for high light efficiency.
8. The dimension can be made by customized.


Specifications:


Order No. Name Model D65 TL84 F UV CWF TL83 Voltage
10113  Standard light source booth P60(6) six light source(220V) 2pcs 2pcs 4pcs 1pcs 2pcs 2pcs 220V/50Hz
10813 Standard light source booth P60(6) six light source(115V) 2pcs 2pcs 4pcs 1pcs 2pcs 2pcs 115V/60Hz

Optional accessories: light source diffuser 45 degree standard stand.



Light Sources:



Light Source Color viewing booths application Color temperature(k) Power(W)
D65 International standard Artificial Daylight 6500 18
TL84 Applied to stores in Europe, Japan and China 4000 18
CWF (Cool White Fluorescent) American Standard 4150 18
F/A "Sun-setting Light Yellow" incandescent light source(imitation of sunset) 2700 40
UV Viewing under ultraviolet light to detect and evaluate optical brighteners
or fluorescent pigments
Wave length:365nm 18
TL83 Warm White Fluorescent American Standard 3000 18
