T60B British Color Assessment Cabinets

Home >> Products >> Color Assessment Cabinets >> T60B British Color Assessment Cabinets

T60B British Color Assessment Cabinets

79
2020-04-04
T60B British Color Assessment Cabinets
T60B British Color Assessment Cabinets
T60B British Color Assessment Cabinets
T60B British Color Assessment Cabinets
T60B British Color Assessment Cabinets
T60B British Color Assessment Cabinets
T60B British Color Assessment Cabinets
T60B British Color Assessment Cabinets

T60B British Color Assessment Cabinets

79
2020-04-04
Introduction:
Brand: TILO
Made in China
Configuration: D65, TL84, F, UV four light sources
Weight: 28Kg
Dimensions(WxDxH): 710x405x570 mm

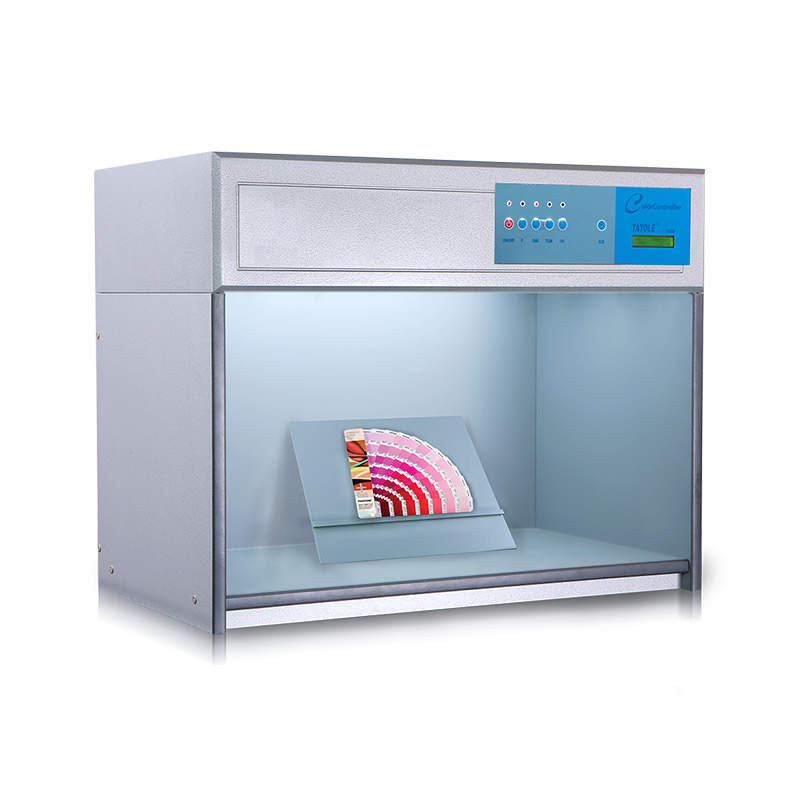

T60B Color Assessment Cabinets is equipped with 4 light sources. Colors appear differently under different lighting sources. To avoid/reduce the assessment error when performing color contrast, we can make use of a Light Booth / Viewing Booth/Color Light Box to simulate different light sources to obtain an objective assessment of color and color difference, anytime, anywhere.

T60B Color Assessment Cabinets

Features:

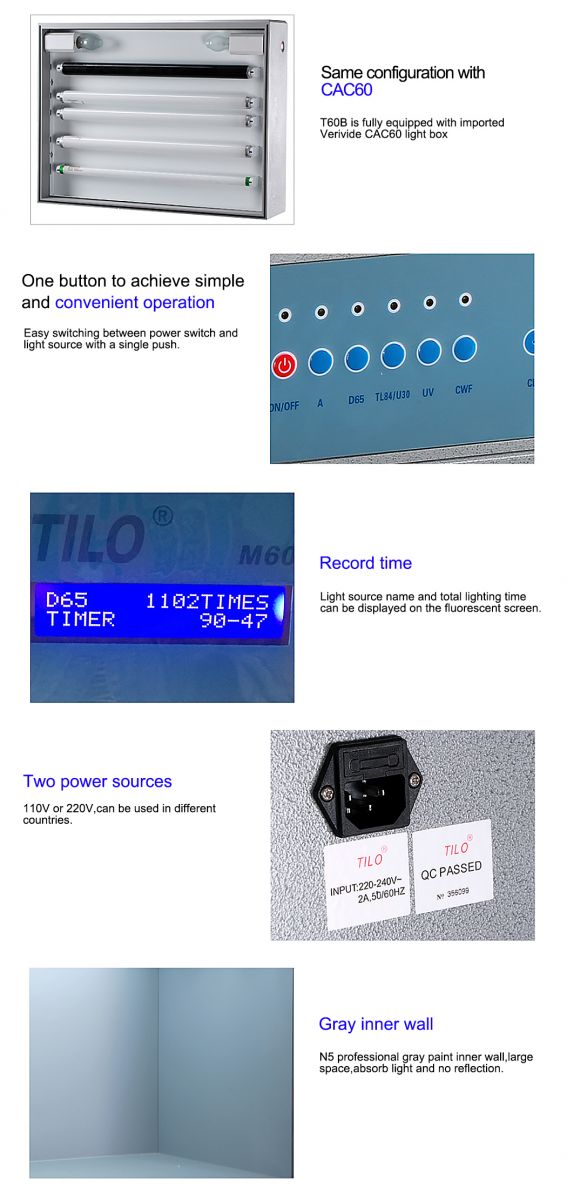

1. Display usage time, name, and number of switches for each source
2. Automatic switching of light source with metamerism
3. No warm-up, no flashing, fast and reliable evaluation of colors
4. Low energy consumption, no heat dissipation, high luminous efficiency
5. Original British CAC60 type lamp, the background color is fully compatible
6. TILO high standard international brand.


Application:



The Color matching booths / Colour assessment cabinets / Color matching light box can be applied to the industries that need to perform color difference testing as follows: as the premiere designer and manufacturer of color viewing and lighting products for the Graphic arts, Photographic, Textile, Dyeing, Packaging, Printing, Leather, Inks, Knitwear, Plastic, Automotive and Ceramics industries.


Specifications:


Order No. Name Model D65 TL84 F UV Voltage
10102  Standard light source booth T60B four light source(220V) 2 pcs 2 pcs 4 pcs 1 pcs 220V/50Hz
10802 Standard light source booth T60B four light source(115V) 2 pcs 2 pcs 4 pcs 1 pcs 115V/60Hz

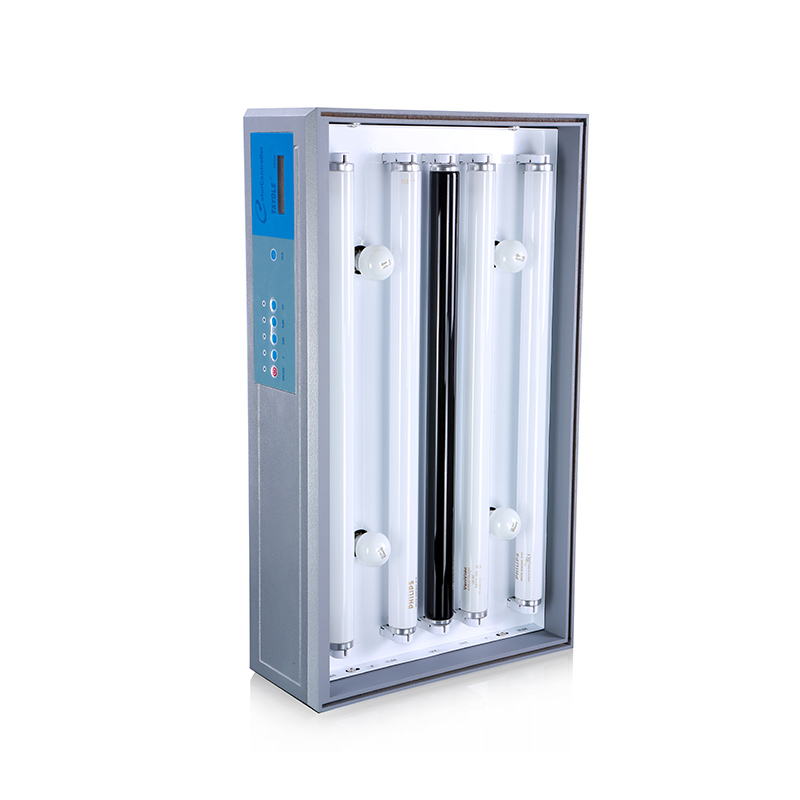

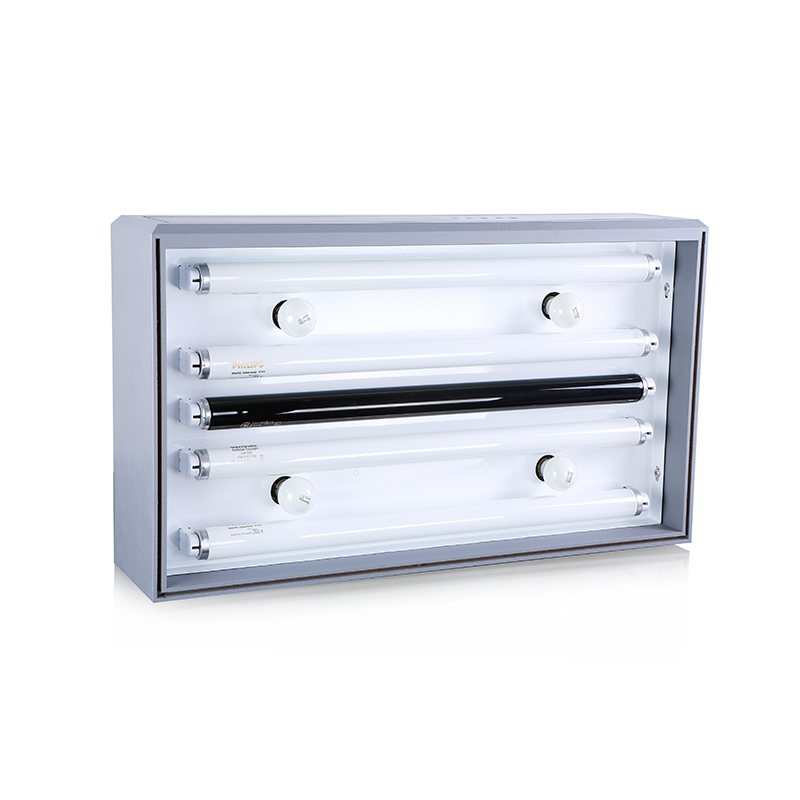

Light Sources:


Light Source Color viewing booths application Color temperature(k) Power(W) Brand&Specification
D65 International standard Artificial Daylight 6500 20 VeriVide F20T12/65
TL84 Applied to stores in Europe, Japan and China 4000 18 PHILIPS
TL-M 20W/840
F "Sun-setting Light Yellow" incandescent light source (imitation of sunset) 2700 40 (VeriVide)
Crompton
240V/40W
UV Viewing under ultraviolet light to detect and evaluate optical brighteners or fluorescent pigments Wave length:365nm 20 PHILIPS
TLD 18W/BLB
